Successful Mold Geometries.

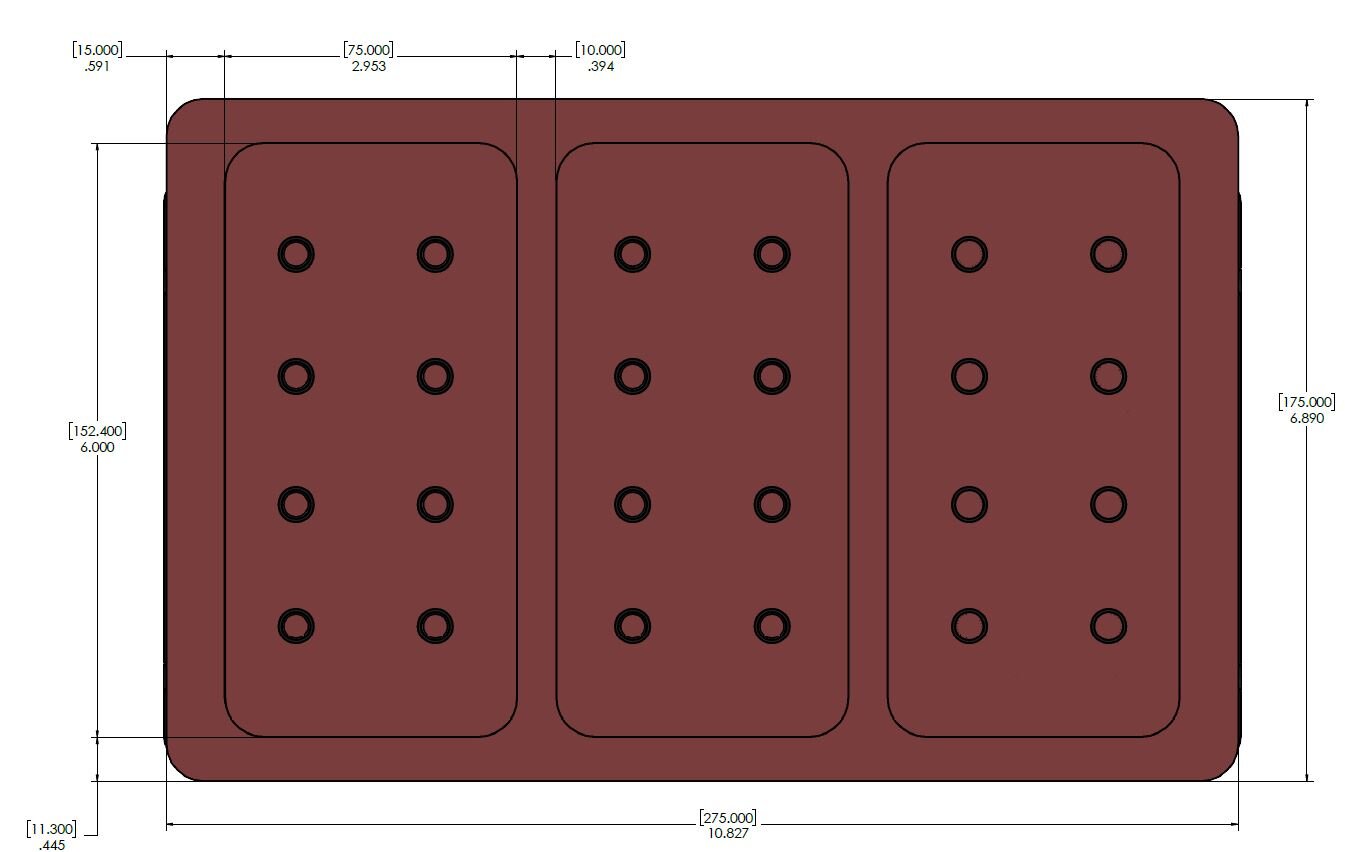

The images below depict a variety of mold configurations that have been successfully used with the FE-Depositor Standard 3 Bar. The red base represents the customers mold, while the squares represent the unique cavity geometry. Within the Squares are eight circles each circle represents the position of the the nozzles on the FE-Depositor Standard 3-Bar.

• Industry standard mold is 275mm x 175mm

• Cavity placement within the mold is flexible and is generally specified by chocolatier

• Typically the positions of the cavities can be adjust to match the Standard if you are still in the mold purchasing phase.

• If you are planning to switch molds consider reaching out to fairbankengineering@gmail.com and we will provide a recommendation for your mold geometry so that it matches the Standard Channel Plate.
